Configuring the Risk Analysis (RA) module
The platform contains all the essential elements for an organization to perform ADRs according to industry best practices. However, it is possible that an organization has different standards and methodologies with respect to ADRs that will require different configurations according to the needs of the company.
Follow the steps on the following timeline for optimal
configuration:
1. Risk
Assessment Factors

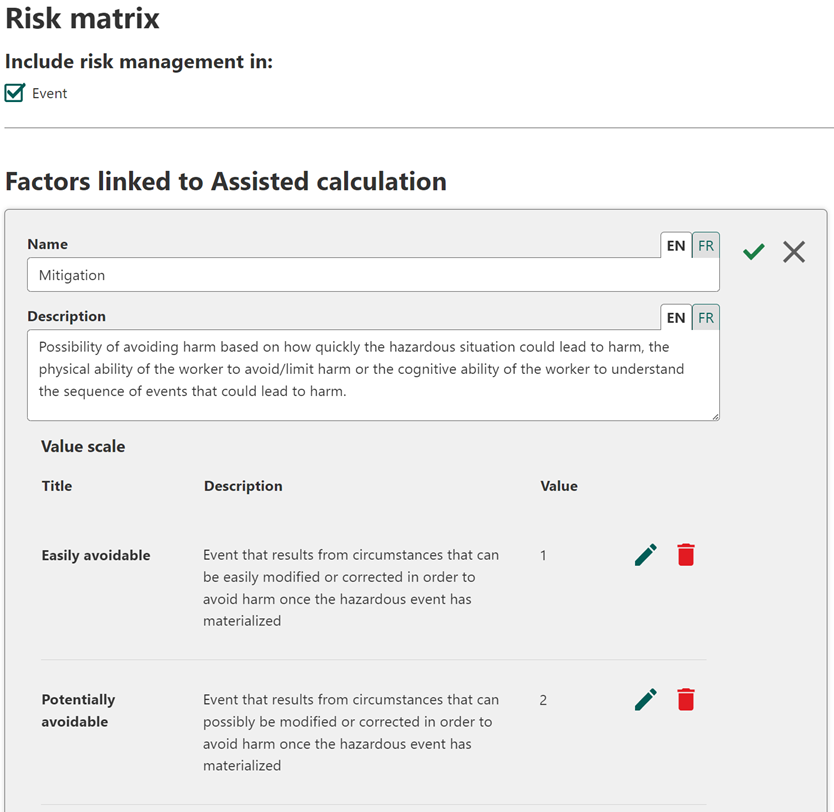

a) General Settings > Risk Matrix > Factors Related to Assisted Calculation:
- By default, the platform has 4 factors to make the assessment of the initial and residual risk index. The 4 default factors are listed below, however, they can be edited, deleted or modified according to the organization's practices. It is also possible to create a factor by clicking on the "Create a factor" button at the top of the page.
- Attenuation
- Potential severity
- Frequency of exposure
- Frequency of implementation
- Each factor has a value scale that can be modified according to the company's risk assessment practices. Each factor will be used to assess the risks associated with a position, task or machine. However, these factors will also be used for the assessment of risks related to an event or near-event, which allows a standardization of risk practices in HSE.
- To edit a factor, click the pencil icon to the left of the "Value" column.
Task: Review each factor to validate their suitability with the company's processes. Each setting can be changed by a platform administrator.
The factors can be aligned with the Dilygence parameters. Dilygence's reference lists are available as needed. |
Data migration from Dilygence to Conformit:
The reference lists between CONFORMiT and Dilygence must be EXACTLY the same on the description, uppercase, lowercase, accents, parentheses) in order to be able to import historical data. |
2. Configuring
the Risk Matrix
https://conformitsupport.zohodesk.com/portal/en/kb/articles/setting-up-the-risk-matrix-23-2-2023

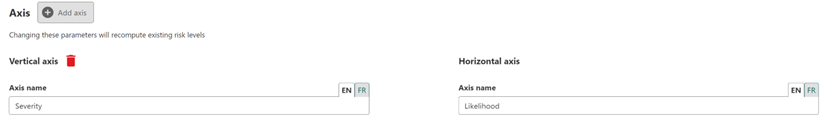

a) General Settings
> Risk Matrix > Axes:
ยท The axes defined in the platform according to common names in Risk Management. However, the vertical and horizontal axes of the risk matrix can be modified according to the terms and definitions used by the organization.
ยท To change the name of an axis, click the text field under "Axis Name" and enter the desired name.
b) Calculations of risk indexes
Risk indices are subject to change depending on the organization's practices. The initial and residual indexes will be calculated according to these parameters and will display these indices according to the selected choices according to the scales of factors established above.
The calculation of risk indices can be based on a linear single-axis or two-axis index โ see two examples below ร |

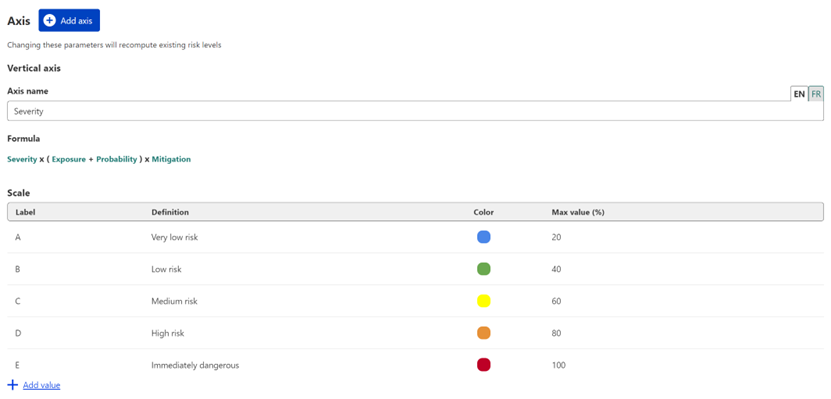

Example of a matrix for calculating one-axis risk indexes

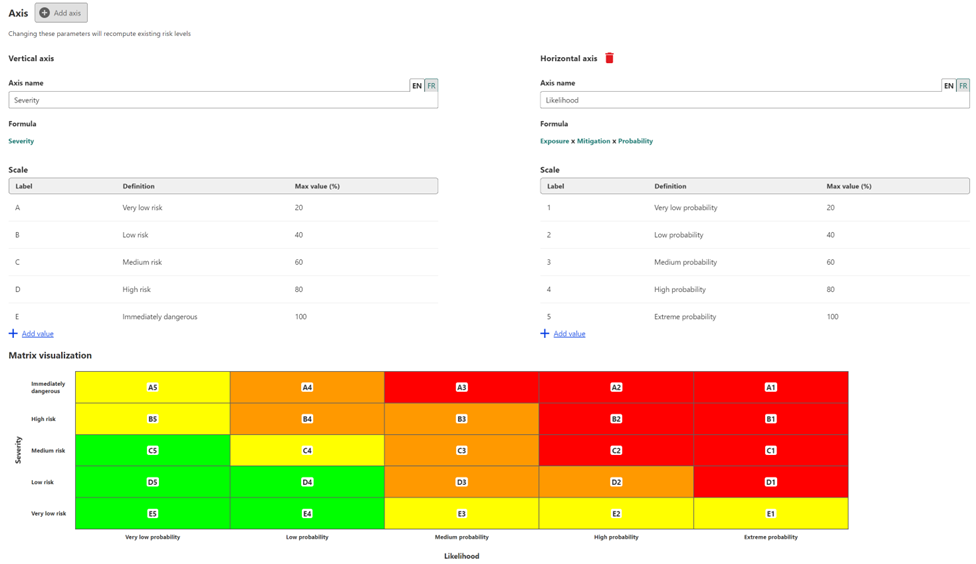

Example of a matrix for calculating two-axis risk indices
ยท To edit a calculation formula, click the pencil icon to the left of the formula you want to edit the formula using the calculator.
To have a calculation of the risk indices identical to Dilygence, the formulas of the axes must be as follows: ยจ Vertical axis: Potential severity x โ(mitigation) Horizontal axis: (Exposure frequency + Realization frequency) x โ(Attenuation) |
c) Risk matrix axes

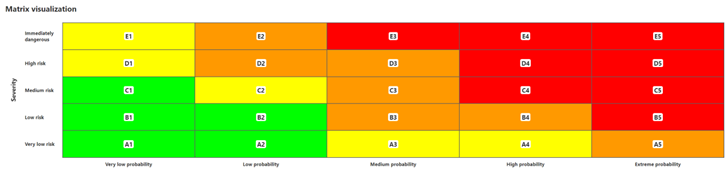

A 5 x 5 risk matrix (5 levels of Probability
and 5 levels of Severity) is available in the platform and it is based on
standard risk management practices. However, this matrix can be modified according to the organization's
practices. The modification of the
matrix will impact the initial and residual risk indices of the ADRs and the
risk assessment in the event reporting.
ยท To edit a cell, click on the cell. You will then be able to change the cell text and color.
3. Configuring
Risk Components

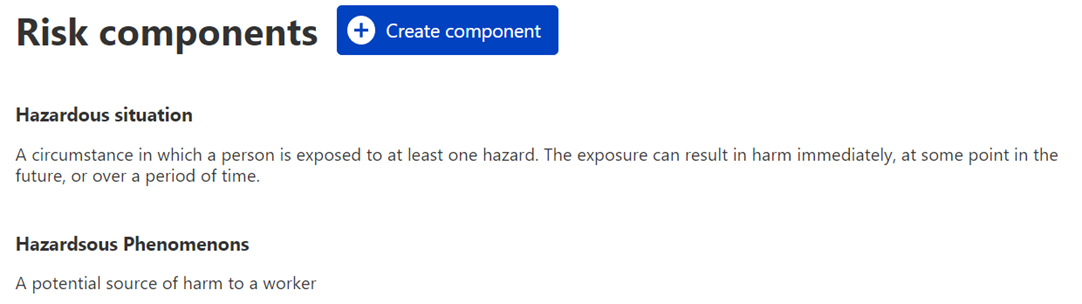

a) General Settings
> Risk Analysis > Risk Components:
ยท The platform has, by default, the components of a risk below that can be customized for business needs. Modifying these components will impact the establishment of the risk context during the documentation of the latter.
ยท Dangerous phenomenon
ยท Dangerous situation.
ยท To edit a risk
component, please hover your cursor over the component title and click the
pencil icon. You will then be able to edit the name, as well as the
description.
Import of Dilygence IN COMPLIANCE: The reference lists (Dangerous Phenomenon and Dangerous Situation) between CONFORMiT and Dilygence must be EXACTLY the same on the description, uppercase, lowercase, accents, parentheses) in order to import historical data. There may be additional components in CONFORMIT, however, those present in Dilygence must be a perfect match with CONFORMiT's SaaS platform. |
4. Consequence
configuration
a) General Settings
> Risk Analysis > Consequences:
ยท The platform has, by default, a list of consequences that can be changed depending on the context of the company.
ยท The
platform has, by default, a button that is enabled for high severity
consequences to draw users' attention to the criticality of certain risk. This tab can be activated or deactivated
according to the choice of the company .
ยท The platform has, by default, severity values (Severity) for each consequence that can be changed according to the company's choice

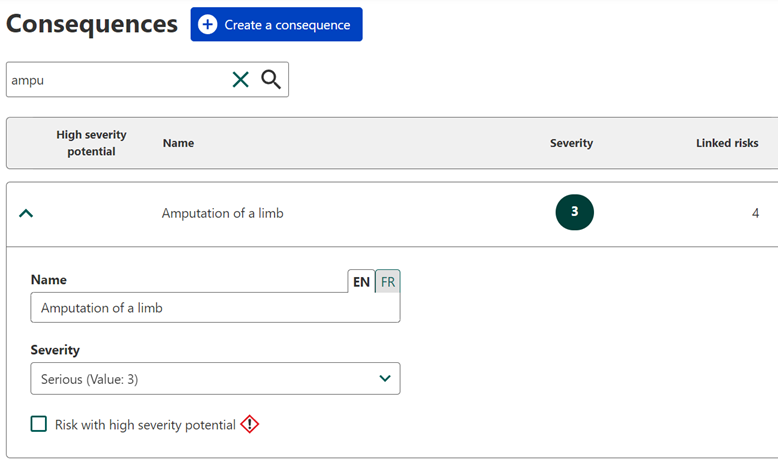

ยง To edit a consequence, click the arrow to the left of its name.
ยง To create a new consequence, click the "Create Consequence" button at the top of the page.

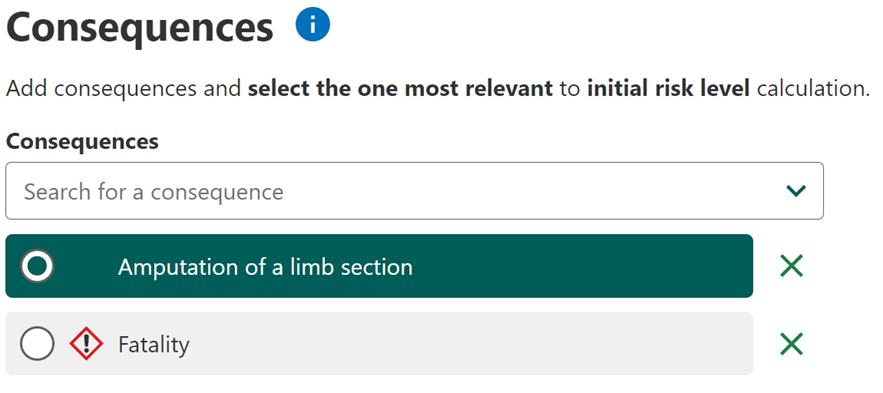

ยท The list of risk consequences is used in the Risk Assessment section . See also: Knowledge Base - Consequences of a Risk
5. Configure
control measures
a) General Settings
> Risk Analysis > Control Measures:
- The platform has, by default, a list of control measures that can be modified according to the context of the company. Its name and effectiveness according to the hierarchy of controls can be modified according to the preferences of the organization.
- Control measures are used to reduce the initial risk index to obtain the residual risk index. The platform shall consider the control measure that has the mitigating factor within the list of measures of the selected controls and is in place. The reduction factor can be configured according to the needs and requirements of your organization.
ยง To edit a control measure, click the arrow to the left of its name.
ยง To create a new control measure, click the "Create Control Measure" button at the top of the page.
ยง To change the reduction (mitigation) value of the risk index, choose the value from the drop-down menu that was configured earlier.

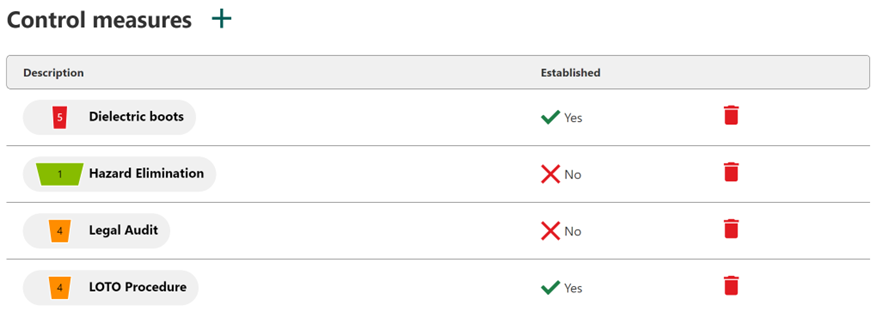

- The list of risk control measures is used in
the Risk Mitigation section . See also to:
ยง Knowledge Base - Selection (Adding) of Control Measures
ยง Knowledge Base - How do I create a new control measure in CONFORMiT?
6. Positions
and Tasks
General

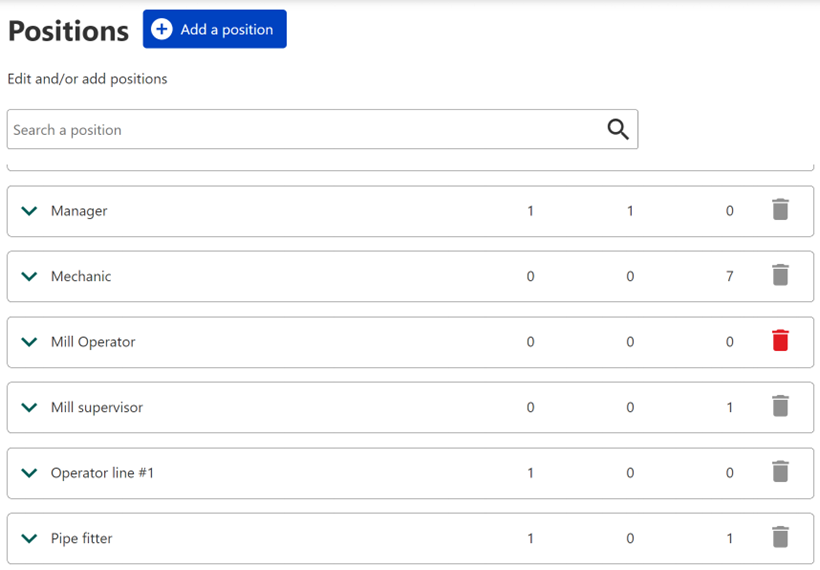

settings > organization > Positions:
ยท Positions held by the organization's staff must be created in the platform. The positions will be useful for: The risk analysis on a position, linking an employee to a position when creating the latter in the personnel list and when reporting an incident.
Importing Dyligence to CONFORMIT: The reference lists (Position and Work Tasks) between CONFORMiT and Dilygence must be EXACTLY the same on the description, uppercase, lowercase, accents, parentheses) in order to be able to import the historical data otherwise they will be added to the reference list. There may be additional items in CONFORMIT, however, those present in Dilygence must have a perfect match with CONFORMiT's SaaS platform. |
General
Settings > Organization > Work Tasks:
ยท The tasks of the organization's staff must be created in the platform. Tasks will be useful for: Risk analysis on a task.
7. Machines
> select an organizational unit
ยท Machines or machine locations in an organization must be created in the platform. The machines will be useful for:
ยง Risk analysis on a machine, and
ยง For the lockout procedure module and possibly on target inspections on equipment/machine.
ยท Machines must be associated with an organizational unit of the platform.
ยท Machines must have a unique identifier but can have identical names.
ยท The machine must have an identifier (numeric or alphanumeric) and not have a name.
ยท The locations are indicated by a sign and the machines by the pictogram
.
Importing machine list from V8: Machine and location listings can be imported from CONFORMIT V8 "on premise" and V8 SaaS on request. The organization must tell us the exact location where this information will need to be uploaded.
Import of ADRs into Dilygence related to a list of machines: If you want to attach ADRs to existing machines in the platform CONFORMIT; machines must be EXACTLY the same on the description, uppercase, lowercase, accents, parentheses) in order to be able to import historical data. Otherwise, the machines will be added to the machine list (the machine name will be uploaded to the machine ID). The organization may, however, amend this list without affecting ADRs.
Note that: There may be additional machines in CONFORMIT, however, those present in Dilygence must have a perfect match with the CONFORMiT SaaS platform otherwise they will be added as a new entity in the list of machines. |
Risk Analysis Configuration (checklist):
Item
Section
Status
Review risk factor reference lists
General Settings > Risk Matrix > Factors Related to Assisted Calculation
Validate and modify the Risk Matrix as required
General Settings > Risk Matrix > Axes
Validate and modify as necessary the Risk Index Calculations
General Settings > Risk Matrix > Axes
Validate and modify the Risk Components as required
General Settings > Risk Analysis > Risk Components
Validate and modify as necessary the Consequences
General Settings > Risk Analysis > Consequences
Validate and modify as necessary the Control Measures
General Settings > Risk Analysis > Control Measures
Validate and modify as necessary the Positions and Tasks
General settings > organization > workstations
Validate and modify the Machines as necessary
Machinery
Importing data from Dilygence โ Multisites
Get the list of POSITIONS references in Excel of the sites
Create a list of global items to import into CONFORMIT
Translate each post (FR/ENG)
Get the TASKS reference list in Excel of the sites
Create a list of global tasks to import into CONFORMIT
Translating each task (FR/ENG)
Get the list of MACHINES references in Excel of the sites
Create a list of global tasks to import into CONFORMIT
Specifies where to import each list
Get the list of DEPARTMENTS references in Excel of the sites
Create a list of Departments to import into CONFORMIT
Ensure that it is consistent with that of CONFORMIT
