Where to select a lockout mechanism?
Where to select lockout mechanism?
Similar questions: Where to indicate the number of padlocks required?- Go to
module. This will open the list of energy isolation procedures. Then select
in the right-side menu bar.
· Find the isolating device whose details you wish to
edit in the list (use the search bar if necessary). Open details page by
clicking on the device Identifier in the first column.

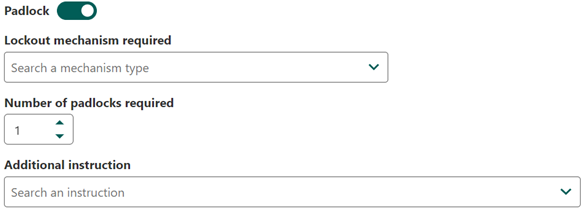

· In the Isolation section activate the Padlock button
that will
open the section to select type of isolating mechanism, number of padlocks and
additional instructions for this step

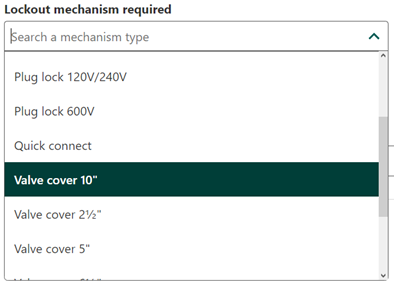

- From the drop-down list select the Lockout mechanism type, that applies to the device you’re working with

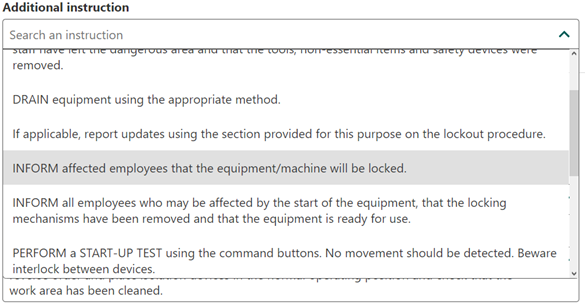

- Additional instructions (if applicable) will appear on the Lockout procedure involving current device.
