Device Energy supply diagram

Device Energy supply diagram

Similar questions:  Where to view Inputs and Outputs of the isolating device? Where to mention what feeds energy to device and what is fed by device? Where to see what devices and machines isolating device cuts energy flow to?

In the   module within   tab find the device that you need to indicate energy inputs and outputs for and click on its Identifier to open details (use the search bar or a filter tool if necessary )

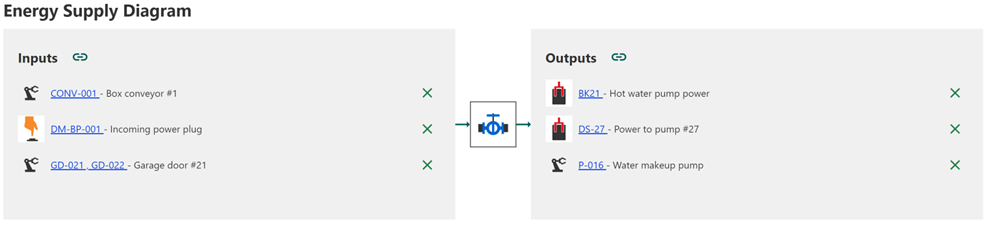

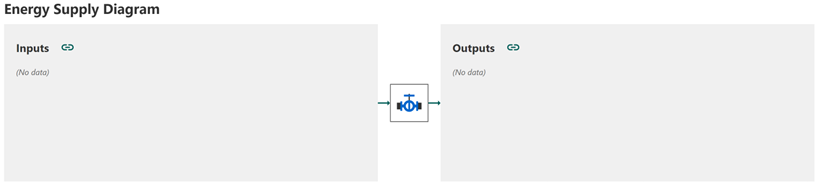

Fields to indicate energy inputs and outputs for the device is in  tab of the isolating device details page

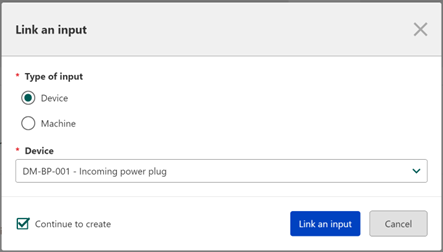

Clicking on   button will open a field to select a Machine or another Device that the energy is coming from/through on in and out side of the current isolating device (select from drop-down list):



If this device receives energy or isolates energy to multiple devices and/or machines – button to   allows to create multiple entries in the current field without having to open the selection window each time.

Once selected – machines or devices appear in relevant fields and can be removed if necessary, by clicking on
