Arranging OSHA incidence rate dashboard.

Arranging OSHA incidence rate dashboard.

Setting up OSHA rate dashboard.

Similar questions: How to view OSHA rate per each unit separately and for all organization combined?

In order to obtain correct graph on OSHA rate dashboard it is necessary that man-worked hours are populated in the table of each unit taken into account for each year depicted on the graph. Units not having worked hours populated will have rate 0 on the dashboard for the period, where man-worked hours are not indicated. Only recordable cases (according to OSHA standards) are taken into consideration for OSHA incidence rate.

  1.          Go to  module and select  in the left side menu -- first section will be OSHA yearly rate, that is calculated as number of incidents and illnesses x 200 000 / employee hours worked This formula is calculated per 200 000 or per 1 000 000 hours worked.


  1. This graph shows by year incidence rate based on how many events have been reported that year and how many hours worked indicated for that year by certain units. Each organization unit has its color of the line on the graph, so it would be visually distinctive on the picture (colors of the unit are demonstrated on the top of the graph.

  1.          In case not all units fit on one graph – click on the next page above the dashboard to navigate to it

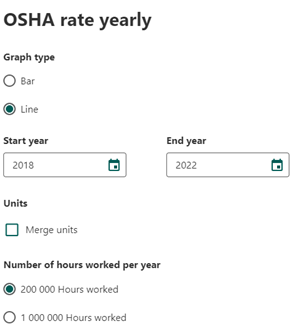

  1.          Click on to open the settings window, where you may select the graph type – vertical bars or a line. You may also set up the start and end year to view the graph for the period that you need.





·         Option to merge units changes the graph with separate lines (or bars) for each unit into one line (or bar) that reflects the joint incidence rate for entire organization.



·   Last option is to select whether calculation is done for 200 000 hours worked per year or 1 000 000 hours.
